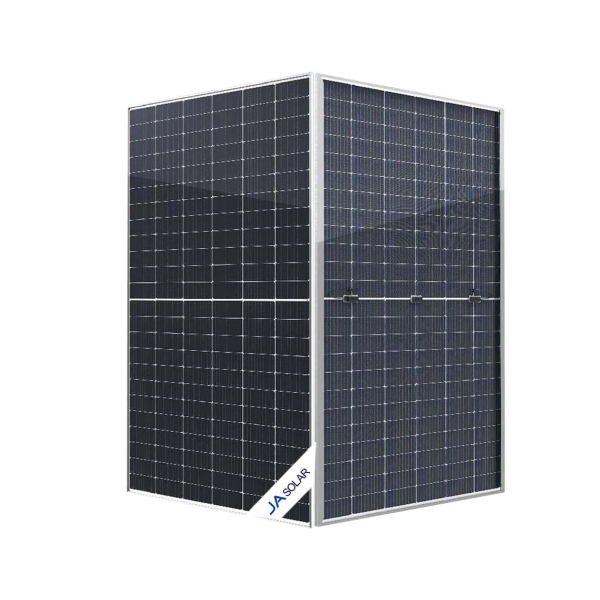

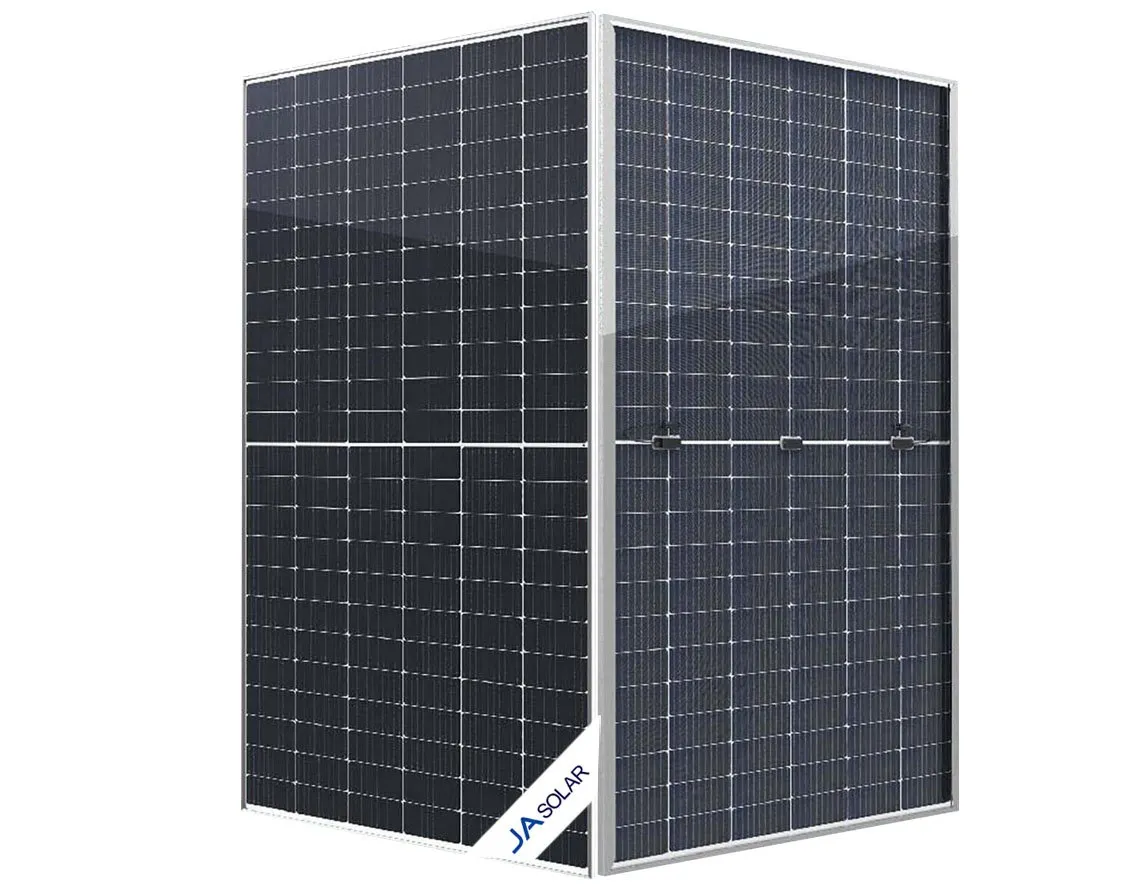

JAM72D42 LB N-type Double Glass Bifacial Modules (Harvest the SunShine 650 W)
Main Features:
- 650W Maximum Power Output
- 26% Cell Conversion Efficiency
- Premium Cells:
- n-Bycium+ 16BB MBB Half-Cell Technology
- Premium Modules:
- Higher power generation, better LCOE
- Better temperature coefficient
- Better low irradiance response
- n-type with very low LID
- Up to 6.3% gain in output power over 30 years compared to standard modules
Certifications:
- IEC 61215, IEC 61730, UL 61215, UL 61730
- ISO 9001:2015 Quality Management System
- ISO 14001:2015 Environmental Management Systems
- ISO 45001:2018 Occupational Health and Safety Management Systems
- IEC 62941:2019 Quality system for PV module manufacturing
Warranty:
- 12-year product warranty
- 30-year linear power output warranty
Mechanical Specifications:
- Cell Type: Mono
- Weight: 34.6 kg
- Dimensions: 2465 ± 2 mm × 1134 ± 2 mm × 30 ± 1 mm
- Cable: 4mm² (IEC), 12 AWG (UL)
- Cable Length: Portrait 1300 mm / 400 mm | Landscape 1500 mm / 1500 mm
- Glass: 2.0 mm front + 2.0 mm back
- Connector: QC 4.10-35/MC4-EVO2A
- Packaging: 36 pcs/pallet, 576 pcs/40’HQ
Temperature Coefficient of Isc: +0.045%/°C
- Temperature Coefficient of Voc: -0.250%/°C
- Temperature Coefficient of Pmax: -0.290%/°C
Operating Conditions:
- Max System Voltage: 1500V DC
- Operating Temperature: -40°C ~ +85°C
- Max Series Fuse Rating: 30A
- Max Static Load Front: 5400 Pa (113 psf)
- Max Static Load Back: 2400 Pa (50 psf)
- NOCT: 45 ± 2°C
- Bifaciality: 80% ±5%
- Safety Class: Class II
- Fire Performance: UL Type 29/Class C
