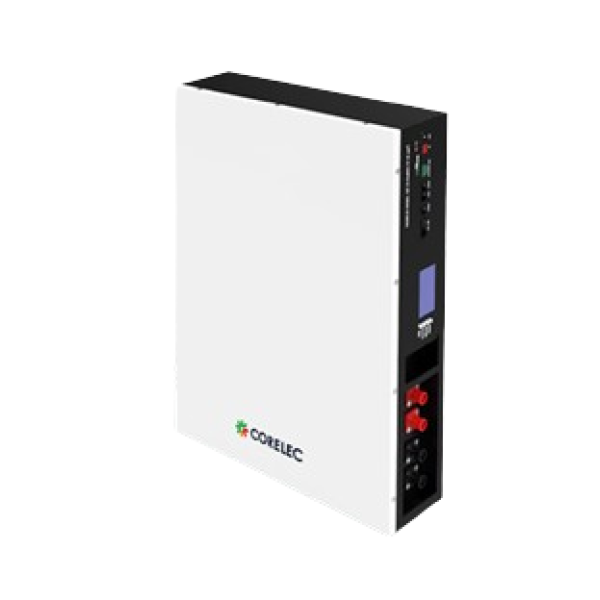

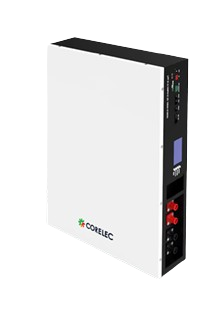

Corelec LFP48100W (Wall-Mounted Battery )
Basic Info:
- Model: LFP48100W
- Mounting: Wall-mounted
- Nominal Voltage: 51.2V
- Capacity: 100Ah
- Energy: 5.12 kWh
- Approx. Weight: 108 kg
- Warranty: 5 years
- FOB Price: $460 (as per invoice)
Technical Specifications:
| Parameter | Value |
| Battery Type | LiFePO₄ |
| Operating Voltage | 42.4–59.2V (±0.4V) |
| Charge/Discharge Current | 100A / 100A |
| Max Discharging Power | 120A |
| Depth of Discharge (DOD) | 80% (Max 100%) |
| Cycle Life | >8000 cycles (80% DOD) |
| Communication | CAN / RS485 |
| Protection Level | IP21 (IP65 optional) |
| Parallel Expansion | Up to 16 units |
| Cooling | Natural Convection |
| Operating Temp. | Charging: -560°C |
| Dimensions (W x H x D) | 710 x 450 x 400 mm |
🌟 Key Features:
- Over 8000 life cycles at 80% DOD
- IP65 version available
- Safe wall-mounted installation
- 1C charge and discharge
- BMS with RS485/CAN communication
- Compact and aesthetic design
